Kadee

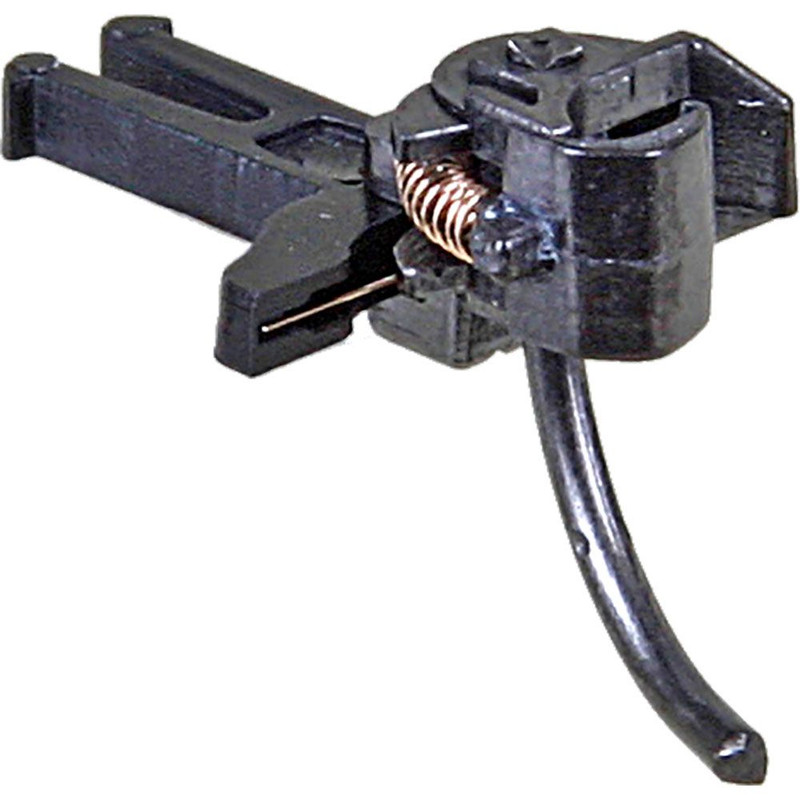

Kadee 17 HO Scale NEM 362 European-Style Couplers - Short (7.11mm , .280 inch , 9/32")
- SKU:
- Kadee 17
- UPC:
- 765484000174
- Shipping:
- Calculated at Checkout
This industry leading coupler features an NEM 362 European Style Coupler. The #17 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
NEM 362 Coupler Instructions
Two pair per package
(w/o Draft Gear Boxes)
UPC: 765484000174
USA Flag Made in the U.S.A.
HO-Scale
Package Includes:
(2) Pair #17 Couplers (Aassembled) - Short Underset
(2) #622 Knuckle Springs
#17 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank
Length - Short (7.11mm , .280 inch , 9/32") (pulling face to the dovetail sholder)
Coupler Offset - Underset
Knuckle Spring - #622
Centering System - NEM European Style Coupler
Head - Standard Head
Mounting Specifications:
Mounting Height - 7.11mm , .334"
Centerline - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
Recommended Tools:
#206 Insulated Multi-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
